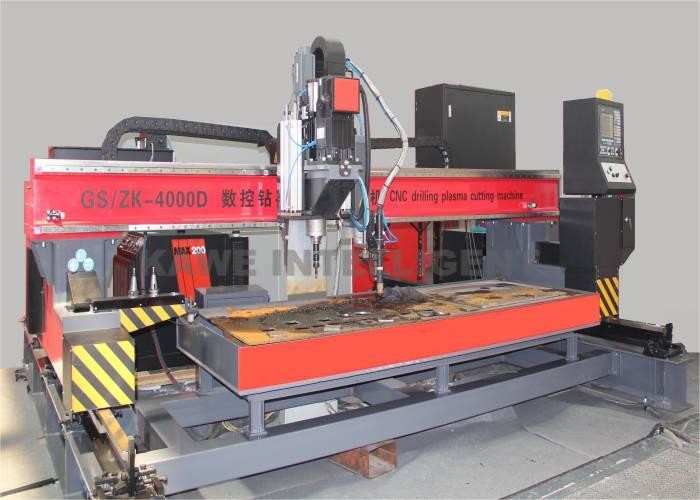

Multi Function CNC PLASMA CUTTING And Drilling MACHINE For Steel Plate
Summarize
CNC drilling&cutting machine is a kind of compound processing machine with high efficiency, high precision, high reliability machine, combining the technology of CNC drilling machine and CNC cutting machine. The main feature of numerical control is that the cutting machine can process according to the drawing, substitute the trivial, inefficient artificial calculation for computer programming and accurately cut various complicated shapes. When workpiece do not need drilling, this machine can process cutting steel accurately like other cutting machine, when workpiece needs drilling and tapping,this machine can drill and tap at first, and then process cutting, it realizes one machine services serval processes, greatly improves the cutting efficiency.
CNC drilling&cutting machine is new automatic equipments that can do high-precision steel heat cutting for steel industry, shipbuilding, large machine, chemical equipment, boiler fabrication, and automobile etc.
Main technical parameters
| Rail Span | 4000mm |
| Rail length | 12000mm |
| Machinable workpiece width | 2500mm |
| Machinable workpiece length | 9500mm |
| Machinable workpiece thickness | 3-32mm |
| Transverse motor power | 750w |
| Main shaft longitudinal stroke | 9500mm |
| Longitudinal motor power | 2*2kw |
| Drive way | double-way drive |
| Drive system | Japan Panasonic all digital AC servo drive and driver |
| Fast moving speed | 12000 mm/min |
| CNC system | FL-7600KW |
| Drilling Shaft | 1 Group |
| Taper Hole of Spindle | BT40 |
| Main shaft drilling speed | 150-3000rpm |
| Main shaft motor power | 5kw |
| Main shaft lifting stroke | 400mm |
| Lifting motor power | 2kw |
| Drilling thickness | 6-50mm |
| Drilling Diameter | 5-32mm |
| Iron plate dogging device | 2sets |
| Spray cooling unit | 1set |
| Plasma cutting speed | 1000-3000 mm/min |
| Plasma cutting thickness | 6-32mm |
| Effective lifting distance of plasma cutting torch | 150mm |
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
